Unit：mm
9.8 Newton(N)=1Kg=2.2LBS

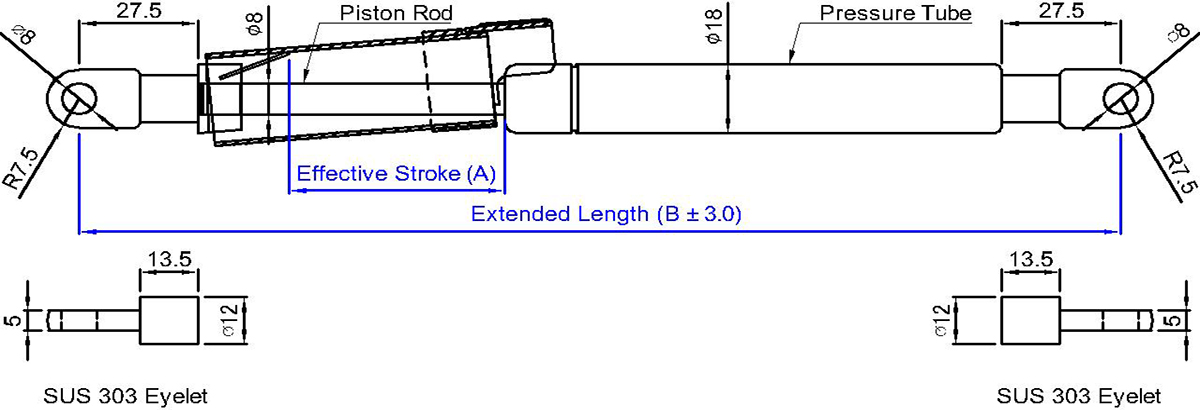

| Model No. | Effective Stroke (A) |
Extended Length (B) |
Force Range(N) | Remark |
| BS-220-A15S08-XXXNPK | 30 | 220 | 100~650N | |
| BS-260-A15S08-XXXNPK | 50 | 260 | 100~650N | |
| BS-300-A15S08-XXXNPK | 70 | 300 | 100~650N | |
| BS-340-A15S08-XXXNPK | 90 | 340 | 100~650N | |
| BS-380-A15S08-XXXNPK | 110 | 380 | 100~650N | |
| BS-420-A15S08-XXXNPK | 130 | 420 | 100~650N | |
| BS-460-A15S08-XXXNPK | 150 | 460 | 100~650N | |
| BS-500-A15S08-XXXNPK | 170 | 500 | 100~650N | |
| BS-540-A15S08-XXXNPK | 190 | 540 | 100~650N | |
| BS-600-A15S08-XXXNPK | 220 | 600 | 100~650N |
