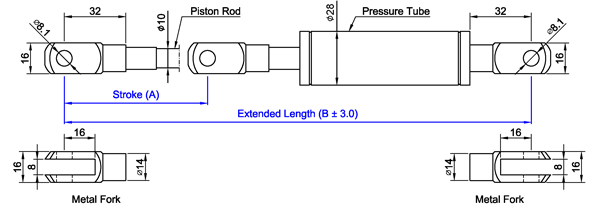

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) | E.L. (B) | Force Range (N) | Remark |
| Z28-364-U6-XXXN | 100 | 364 | 150~1200N | |
| Z28-464-U6-XXXN | 150 | 464 | 150~1200N | |
| Z28-564-U6-XXXN | 200 | 564 | 150~1200N | |
| Z28-664-U6-XXXN | 250 | 664 | 150~1200N | |
| Z28-764-U6-XXXN | 300 | 764 | 150~1200N |
