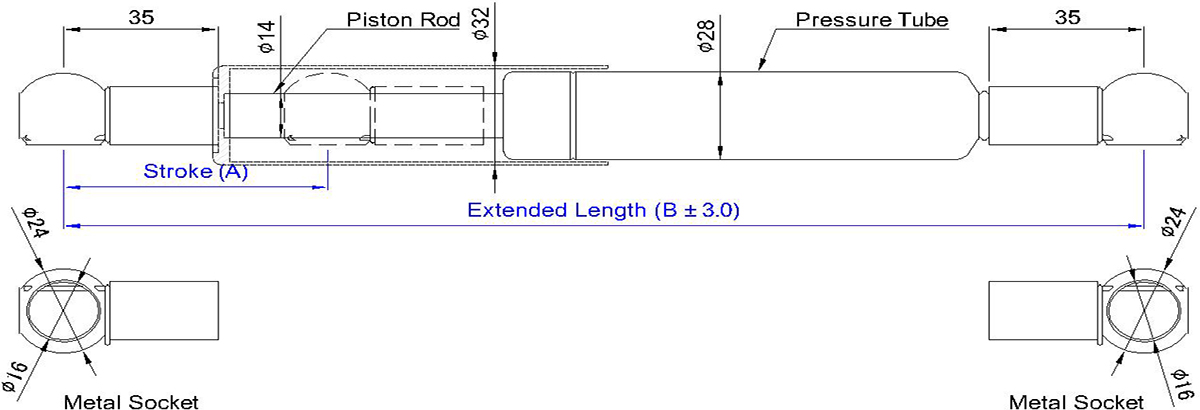

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB4-337-C2435-XXXNDT | 100 | 337 | 300~2500 | |
| SB4-437-C2435-XXXNDT | 150 | 437 | 300~2500 | |
| SB4-537-C2435-XXXNDT | 200 | 537 | 300~2500 | |
| SB4-637-C2435-XXXNDT | 250 | 637 | 300~2500 | |
| SB4-737-C2435-XXXNDT | 300 | 737 | 300~2500 | |
| SB4-837-C2435-XXXNDT | 350 | 837 | 300~2500 | |
| SB4-937-C2435-XXXNDT | 400 | 937 | 300~2500 | |
| SB4-1137-C2435-XXXNDT | 500 | 1137 | 300~2500 |
