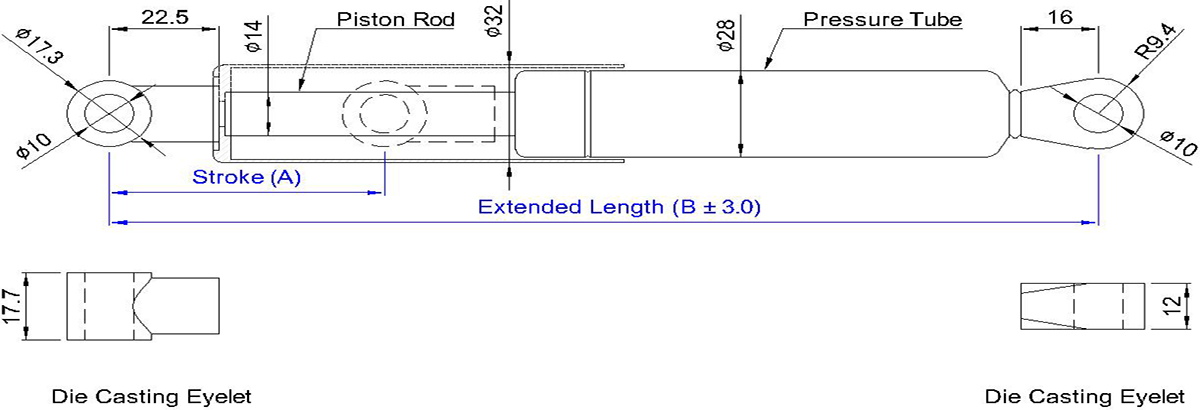

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB4-305-T10D3-XXXNDT | 100 | 305 | 300~2500 | |
| SB4-405-T10D3-XXXNDT | 150 | 405 | 300~2500 | |
| SB4-505-T10D3-XXXNDT | 200 | 505 | 300~2500 | |
| SB4-605-T10D3-XXXNDT | 250 | 605 | 300~2500 | |
| SB4-705-T10D3-XXXNDT | 300 | 705 | 300~2500 | |
| SB4-805-T10D3-XXXNDT | 350 | 805 | 300~2500 | |
| SB4-905-T10D3-XXXNDT | 400 | 905 | 300~2500 | |
| SB4-1105-T10D3-XXXNDT | 500 | 1105 | 300~2500 |
