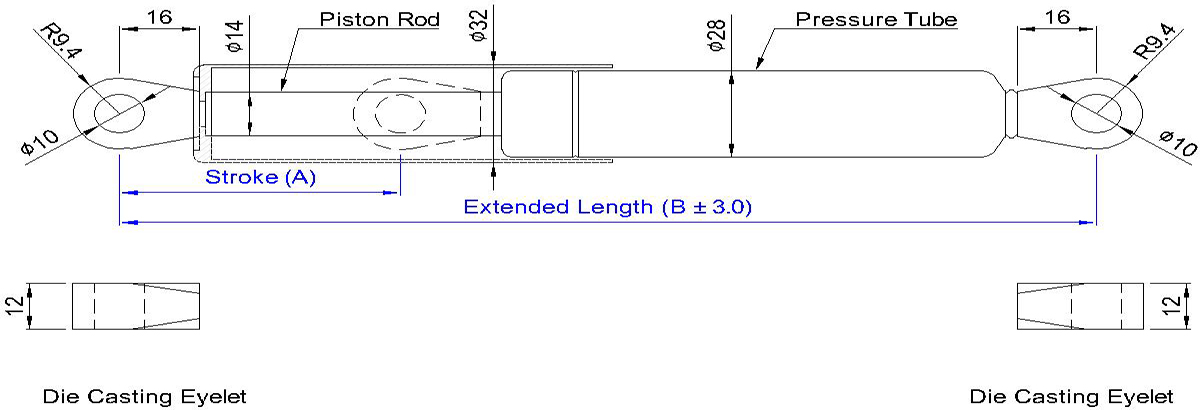

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB4-299-D3-XXXNDT | 100 | 299 | 300~2500 | |
| SB4-399-D3-XXXNDT | 150 | 399 | 300~2500 | |
| SB4-499-D3-XXXNDT | 200 | 499 | 300~2500 | |
| SB4-599-D3-XXXNDT | 250 | 599 | 300~2500 | |
| SB4-699-D3-XXXNDT | 300 | 699 | 300~2500 | |
| SB4-799-D3-XXXNDT | 350 | 799 | 300~2500 | |
| SB4-899-D3-XXXNDT | 400 | 899 | 300~2500 | |
| SB4-1099-D3-XXXNDT | 500 | 1099 | 300~2500 |
