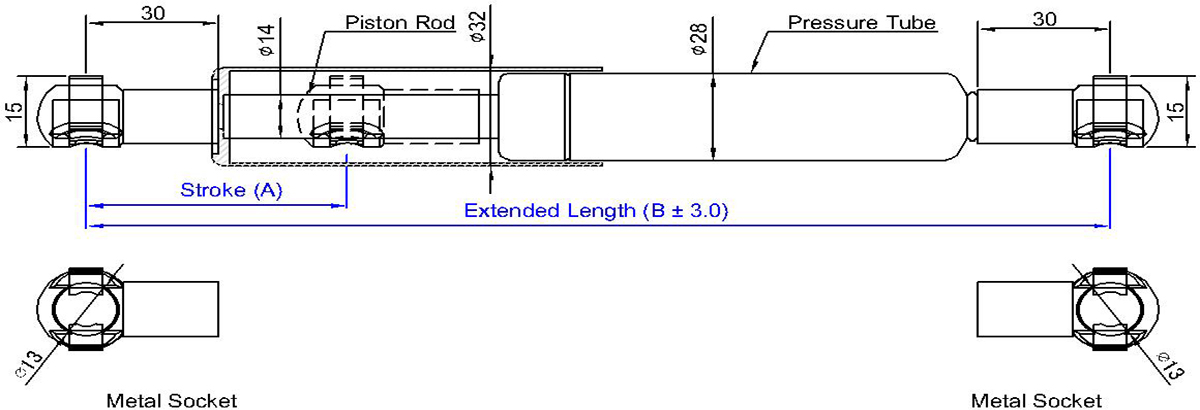

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB4-327-M1930-XXXNDT | 100 | 327 | 300~2000 | |
| SB4-427-M1930-XXXNDT | 150 | 427 | 300~2000 | |
| SB4-527-M1930-XXXNDT | 200 | 527 | 300~2000 | |
| SB4-627-M1930-XXXNDT | 250 | 627 | 300~2000 | |
| SB4-727-M1930-XXXNDT | 300 | 727 | 300~2000 | |
| SB4-827-M1930-XXXNDT | 350 | 827 | 300~2000 | |
| SB4-927-M1930-XXXNDT | 400 | 927 | 300~2000 | |
| SB4-1127-M1930-XXXNDT | 500 | 1127 | 300~2000 |
