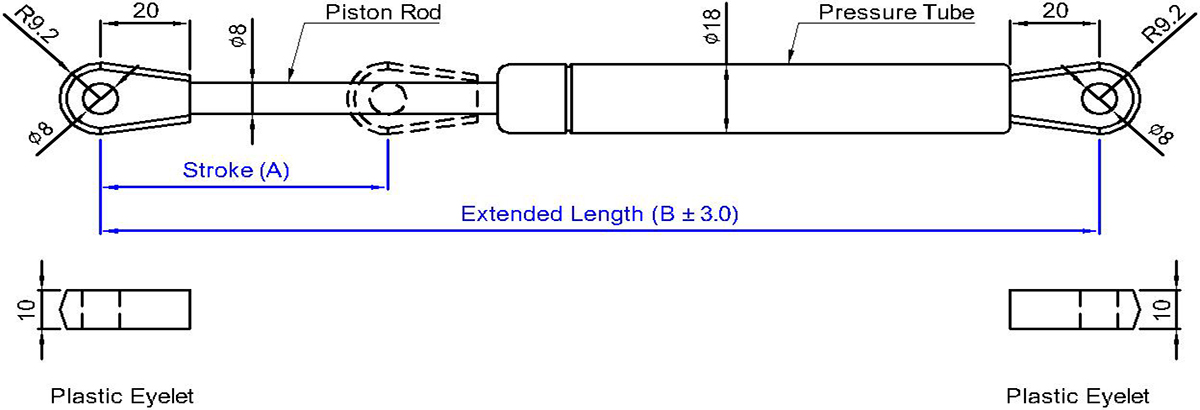

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length(B) |
Force Range(N) |
Remark |
| BS060205-SS1-XXXN | 60 | 205 | 100~650N | |
| BS080245-SS1-XXXN | 80 | 245 | 100~650N | |
| BS100285-SS1-XXXN | 100 | 285 | 100~650N | |
| BS120325-SS1-XXXN | 120 | 325 | 100~650N | |
| BS140365-SS1-XXXN | 140 | 365 | 100~650N | |
| BS160405-SS1-XXXN | 160 | 405 | 100~650N | |
| BS180445-SS1-XXXN | 180 | 445 | 100~650N | |
| BS200485-SS1-XXXN | 200 | 485 | 100~650N | |
| BS220525-SS1-XXXN | 220 | 525 | 100~650N | |
| BS250585-SS1-XXXN | 250 | 585 | 100~650N |
