Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

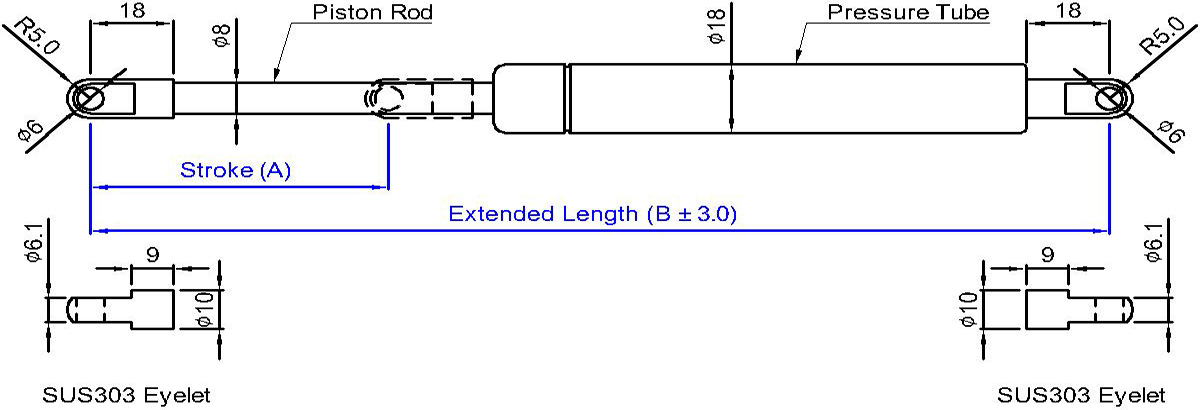

| Model No. | Stroke (A) |
Extended Length(B) |
Force Range(N) |
Remark |
| BS060201-L1S-XXXN | 60 | 201 | 100~650N | |
| BS080241-L1S-XXXN | 80 | 241 | 100~650N | |
| BS100281-L1S-XXXN | 100 | 281 | 100~650N | |
| BS120321-L1S-XXXN | 120 | 321 | 100~650N | |
| BS140361-L1S-XXXN | 140 | 361 | 100~650N | |
| BS160401-L1S-XXXN | 160 | 401 | 100~650N | |
| BS180441-L1S-XXXN | 180 | 441 | 100~650N | |
| BS200481-L1S-XXXN | 200 | 481 | 100~650N | |
| BS220521-L1S-XXXN | 220 | 521 | 100~650N | |
| BS250581-L1S-XXXN | 250 | 581 | 100~650N |
