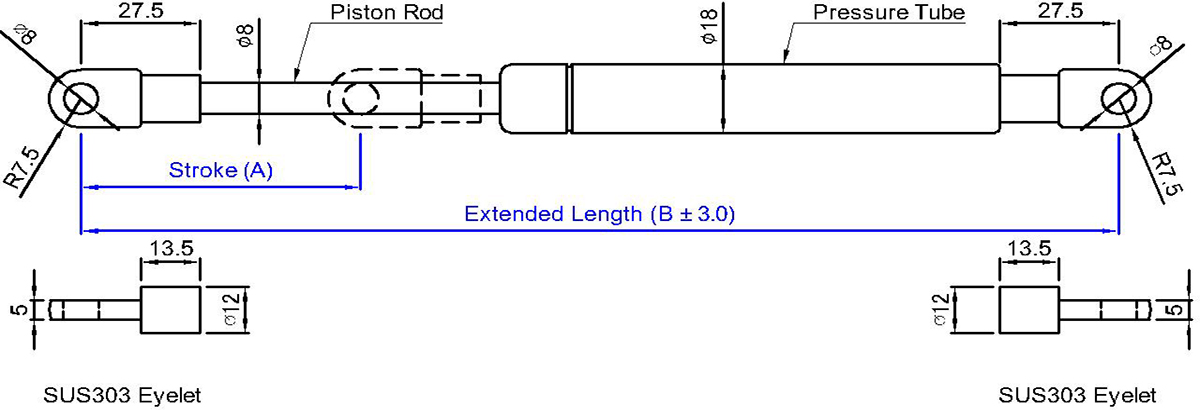

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. | Stroke (A) |
Extended Length(B) |
Force Range(N) |
Remark |
| BS060220-A15S08-XXXN | 60 | 220 | 100~650N | |
| BS080260-A15S08-XXXN | 80 | 260 | 100~650N | |
| BS100300-A15S08-XXXN | 100 | 300 | 100~650N | |
| BS120340-A15S08-XXXN | 120 | 340 | 100~650N | |
| BS140380-A15S08-XXXN | 140 | 380 | 100~650N | |
| BS160420-A15S08-XXXN | 160 | 420 | 100~650N | |
| BS180460-A15S08-XXXN | 180 | 460 | 100~650N | |
| BS200500-A15S08-XXXN | 200 | 500 | 100~650N | |
| BS220540-A15S08M6-XXXN | 220 | 540 | 100~650N | |
| BS250600-A15S08M6-XXXN | 250 | 600 | 100~650N |
