Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

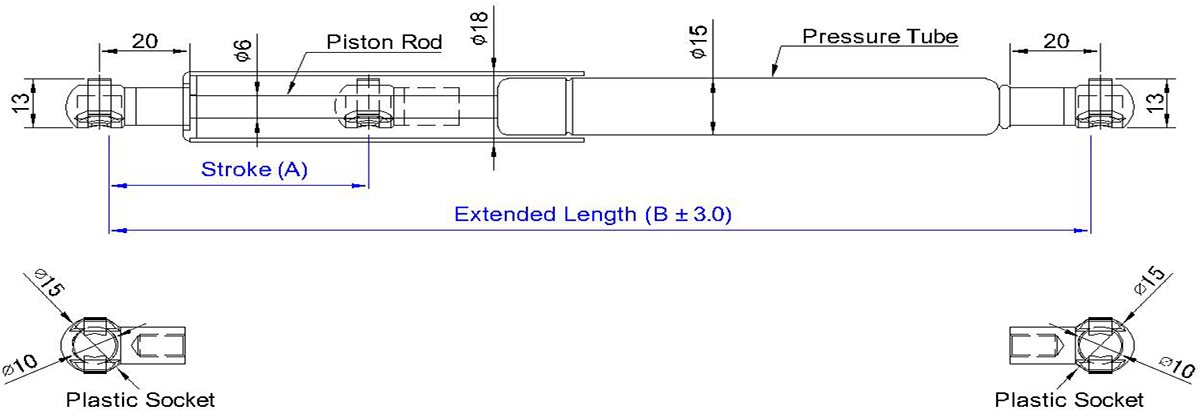

| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB1-161-M9-XXXNDT | 40 | 161 | 50~400 | |
| SB1-201-M9-XXXNDT | 60 | 201 | 50~400 | |
| SB1-242-M9-XXXNDT | 80 | 242 | 50~400 | |
| SB1-257-M9-XXXNDT | 90 | 257 | 50~400 | |
| SB1-282-M9-XXXNDT | 100 | 282 | 50~400 | |
| SB1-323-M9-XXXNDT | 120 | 323 | 50~400 | |
| SB1-382-M9-XXXNDT | 150 | 382 | 50~400 |
