Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

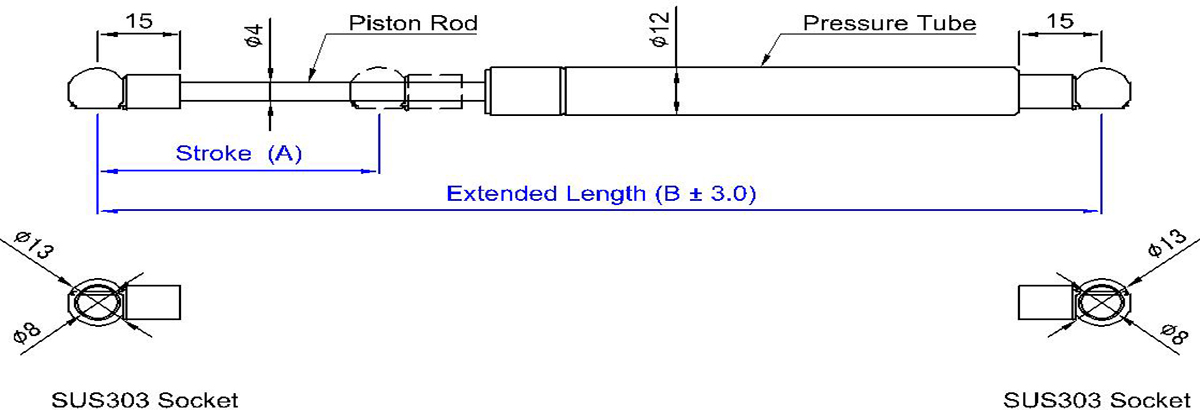

| Model No. | Stroke (A) |
Extended Length(B) |
Force Rang(N) |
Remark |
| KS015089-C13S15-XXXN | 15 | 89 | 10~80 | |
| KS020099-C13S15-XXXN | 20 | 99 | 10~80 | |
| KS030119-C13S15-XXXN | 30 | 119 | 10~80 | |
| KS040139-C13S15-XXXN | 40 | 139 | 10~80 | |
| KS050159-C13S15-XXXN | 50 | 159 | 10~80 | |
| KS060179-C13S15-XXXN | 60 | 179 | 10~80 | |
| KS070199-C13S15-XXXN | 70 | 199 | 10~80 | |
| KS080219-C13S15-XXXN | 80 | 219 | 10~80 | |
| KS090239-C13S15-XXXN | 90 | 239 | 10~80 | |
| KS100259-C13S15-XXXN | 100 | 259 | 10~80 |
