Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS

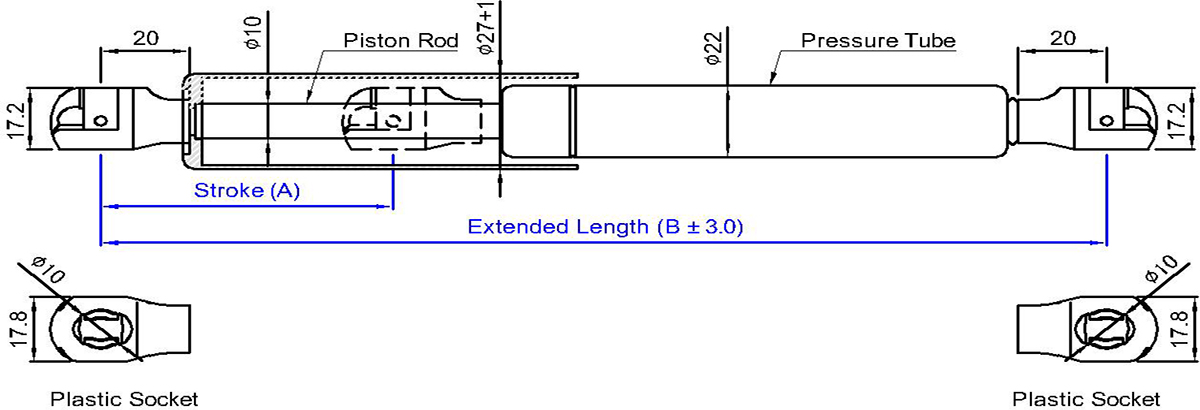

| Model No. | Stroke (A) |
Extended Length (B) |
Force Range(N) |
Remark |
| SB3-242-B10A-XXXNDT | 70 | 242 | 100~1150 | |
| SB3-272-B10A-XXXNDT | 90 | 272 | 100~1150 | |
| SB3-287-B10A-XXXNDT | 100 | 287 | 100~1000 | |
| SB3-332-B10A-XXXNDT | 125 | 332 | 100~1000 | |
| SB3-387-B10A-XXXNDT | 150 | 387 | 100~1000 | |
| SB3-407-B10A-XXXNDT | 160 | 407 | 100~1000 | |
| SB3-452-B10A-XXXNDT | 180 | 452 | 100~1000 | |
| SB3-487-B10A-XXXNDT | 200 | 487 | 100~1000 | |
| SB3-502-B10A-XXXNDT | 210 | 502 | 100~1000 | |
| SB3-527-B10A-XXXNDT | 220 | 527 | 100~1000 | |
| SB3-587-B10A-XXXNDT | 250 | 587 | 100~1000 | |
| SB3-672-B10A-XXXNDT | 280 | 672 | 100~1000 | |
| SB3-687-B10A-XXXNDT | 300 | 687 | 100~1000 | |
| SB3-702-B10A-XXXNDT | 300 | 702 | 100~1000 | |
| SB3-752-B10A-XXXNDT | 330 | 752 | 100~1000 | |
| SB3-787-B10A-XXXNDT | 350 | 787 | 100~1000 | |
| SB3-832-B10A-XXXNDT | 370 | 832 | 100~1000 | |
| SB3-887-B10A-XXXNDT | 400 | 887 | 100~1000 |
