1.When you making enquiry, Please advise us the F1(N) forcerequest.

   Other size also available, Please contact us for further information.

2.Any angle can use.

3.The speed smooth.

4.Increase your equipment the value.

Installation Applications:

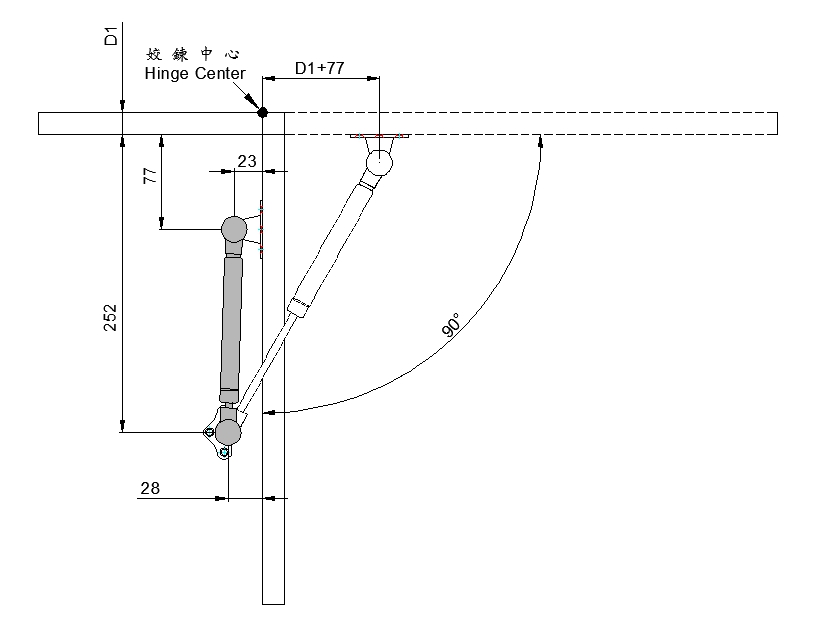

Among the most frequent installation situations for furniture gas spring are flaptype cabinet doors that open upward. For this case, we have defined the best mounting orientation on the following pages.

•

  Unit： mm
  9.8 Newton(N)=1Kg=2.2LBS

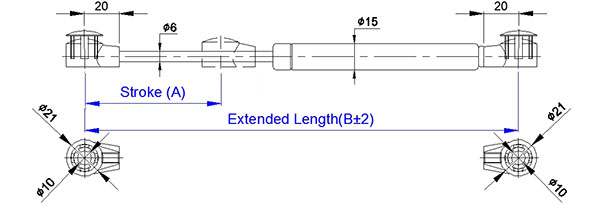

  Model No.	Stroke (A)	Extended Length (B)	Force(N)
  A095260-SS2-025NCFDP	95	260	25N
  A095260-SS2-080NCFDP	95	260	80N
  A095260-SS2-100NCFDP	95	260	100N
  A095260-SS2-120NCFDP	95	260	120N
  A095260-SS2-150NCFDP	95	260	150N
  A095260-SS2-200NCFDP	95	260	200N
  A095260-SS2-250NCFDP	95	260	250N
