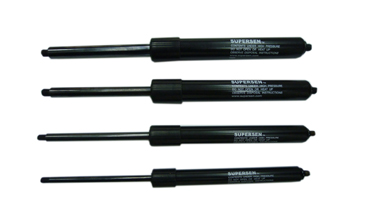

Supersen develop 8 Type gas spring rubber Anti-dust cover suit for gas spring 0412,0615,0818,1022,1222,1227,1228,1428. Series.

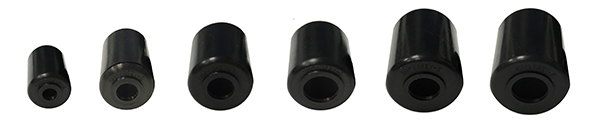

This new gas spring rubber anti-dust cover features on the first single trench but double-contact surfaces design.
It has significant anti-dust and oil removal effect.
It's widely applied to the electronic equipment and the dirty working environment.
Namely the new gas spring rubber anti-dust cover can magically avoid the dust during the gas spring operation and extend the gas spring lifetime.
Inquiry are welcome.
Unit:mm
| Model No. |
ØA |
ØB |
ØC |
D |
E |
F |
Piston Rod Dia. |
Tube Dia. |
Material |
| RB-0412-15 |
3.8 |
11.8 |
14.2 |
14.3 |
15 |
12.8 |
4 mm |
12 mm |
Rubber |
| RB-0615-23 |
5.8 |
14.8 |
17.2 |
22.3 |
23 |
20.8 |
6 mm |
15 mm |
Rubber |
| RB-0818-30 |
7.8 |
17.8 |
20.2 |
29.3 |
30 |
27.8 |
8 mm |
18 mm |
Rubber |
| RB-1022-30 |
9.8 |
21.8 |
24.2 |
29.3 |
30 |
27.8 |
10 mm |
22 mm |
Rubber |
| RB-1222-30 |
12.3 |
21.8 |
24.2 |
29.3 |
30 |
27.8 |
12.5 mm |
22 mm |
Rubber |
| RB-1227-35 |
12.3 |
27.2 |
30.2 |
34.3 |
35 |
32.8 |
12.5 mm |
27.4 mm |
Rubber |
| RB-1228-35 |
12.3 |
27.8 |
30.2 |
34.3 |
35 |
32.8 |
12.5 mm |
28 mm |
Rubber |
| RB-1428-35 |
13.8 |
27.8 |
30.2 |
34.3 |
35 |
32.8 |
14 mm |
28 mm |
Rubber |
