Products │  | Flush push-button controllers
產品大圖 /

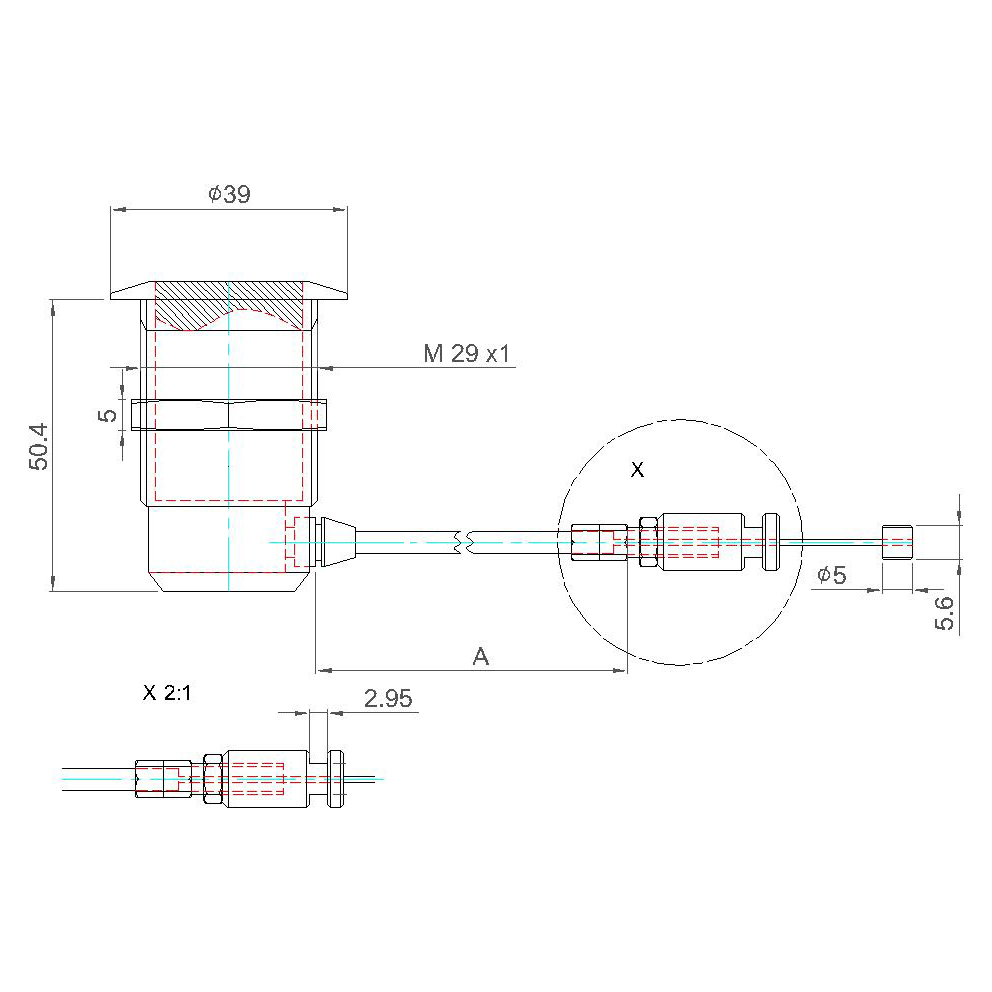

線稿
  Unit:mm



The flush push button is the original design of German STABILUS, which is specially provided to BOL series gas springs as a release system for activating the positioning type nitrogen cylinder switch.

The system on a device linked to Release Heads via wire, the button lets you design in an appropriate position , so that labor and easy operator.

1. The following three types of embedded button controllers need to be used in combination with the Light release head type to form a complete release system.
PN : STDE-ACC-BOL-075052、STDE-ACC-BOL-080788、STDE-ACC-BOL-082222

2. The following three types of embedded button controllers need to be used in combination with the Ultra light release head type to form a complete release system.
PN : STDE-ACC-BOL-068599、STDE-ACC-BOL-069794、STDE-ACC-BOL-073379
