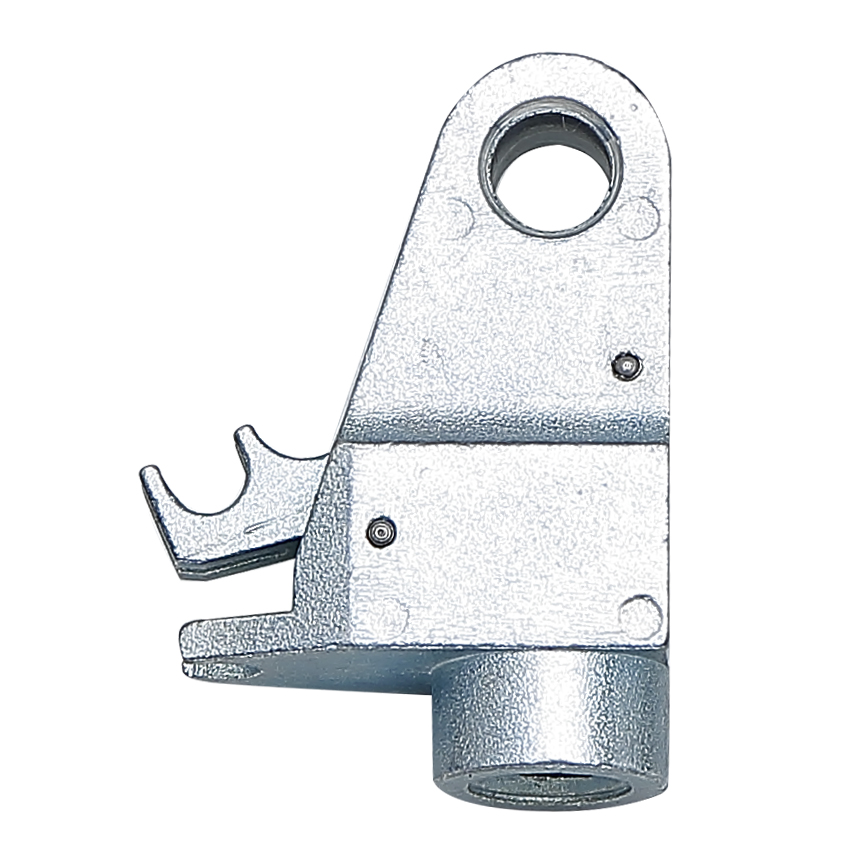

Products │  | Light release head
產品大圖 /

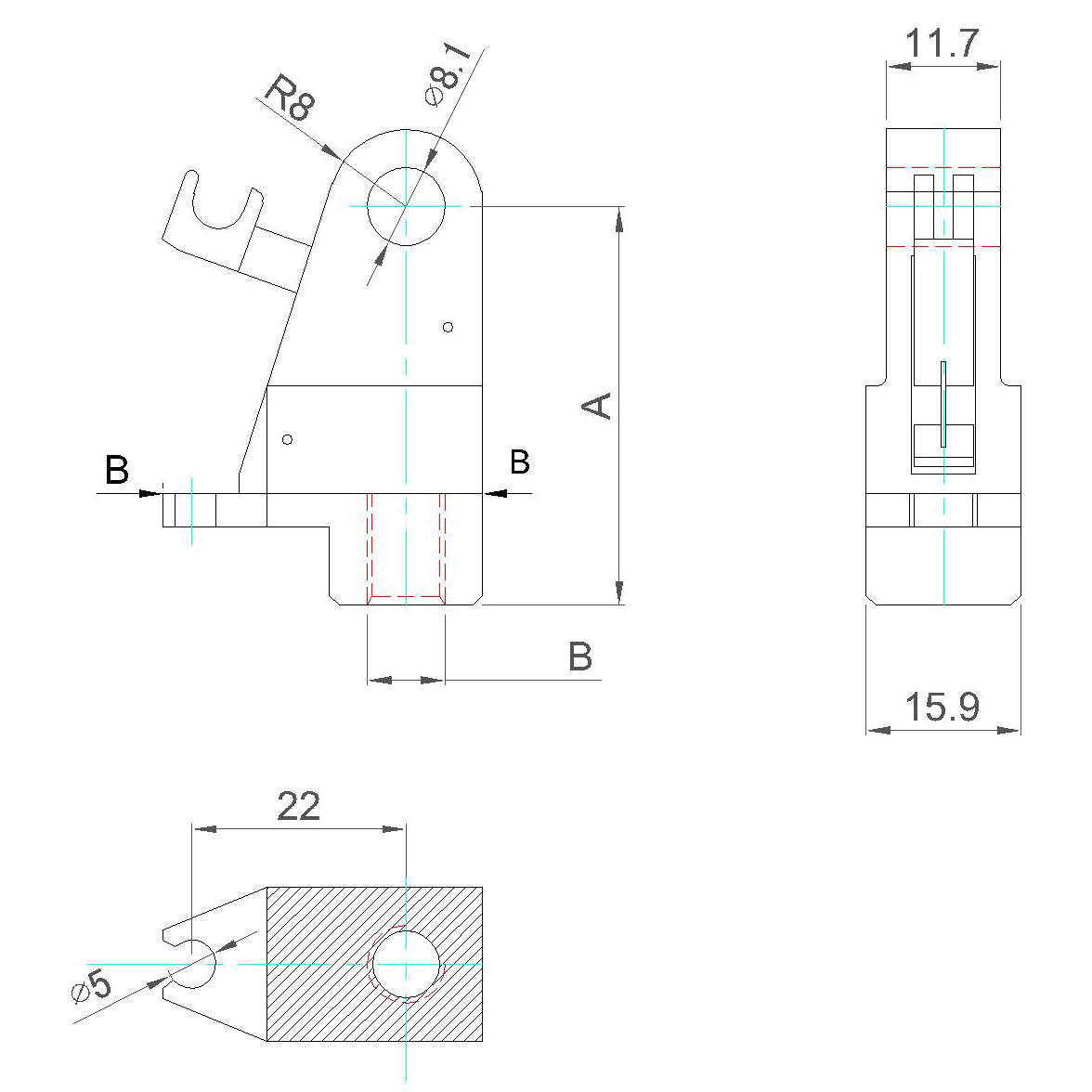

線稿
 Unit:mm
Part No. Hole Center To End
(A)
Thread
(B)
Hole Dia. Material
STDE-ACC-BOL-075291 40.9 M8X1.0 Ø8.1 Alloy Die Casting
STDE-ACC-BOL-006837 40.9 M10X1.0 Ø8.1 Alloy Die Casting


1. PN: STDE-ACC-BOL-075291 Suit for : BOL OBT gas spring series.

2. PN: STDE-ACC-BOL-006837 Suit for : BOL gas spring series , BOL-T gas spring series.

3. The joint can use a pressure bar with a maximum pressure of 500N.

4. It can be used with various Push-buttons conreollers to become a complete control mechanism, which is convenient for customers to design and use.
