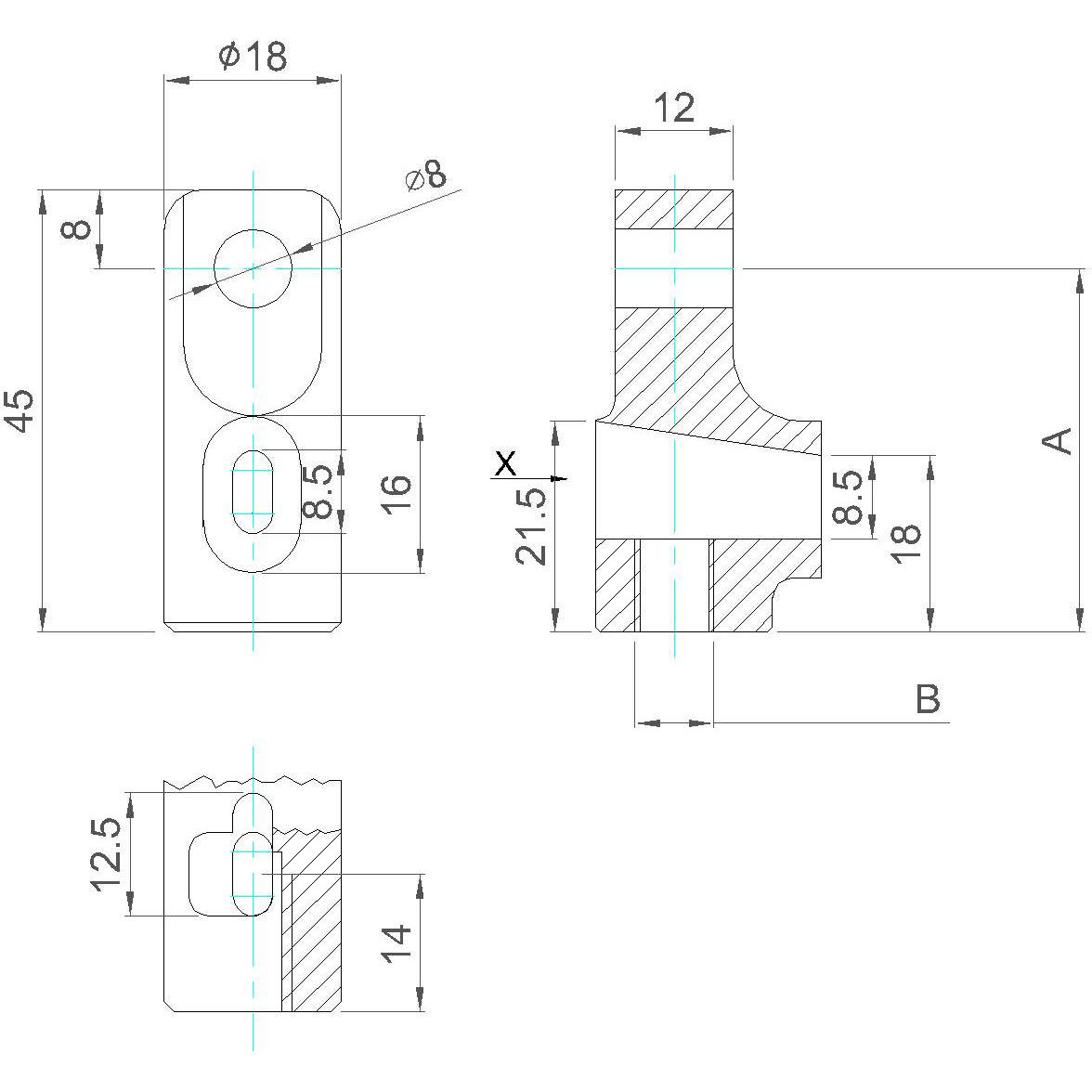

Unit:mm
Part No. |
Hole Center To End
(A) |
Thread
(B) |
Hole Dia. |
Material |
STDE-ACC-BOL-1516CC |
37 |
M8X1.0 |
Ø8 |
Alloy Die Casting |
STDE-ACC-BOL-271985 |
37 |
M10X1.0 |
Ø8 |
Alloy Die Casting |

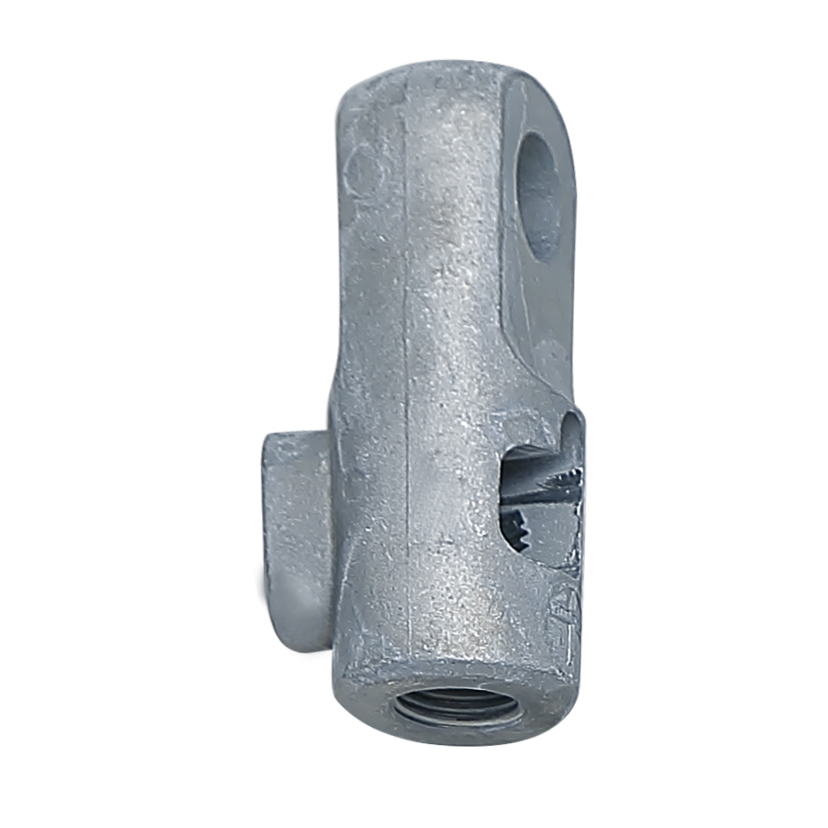

1.The release head has two functions. In addition to be used as start switch, it can also be turned into a release type by pulling the handle side, which can keep the state in a freely retractable.
2.PN: STDE-ACC-BOL-0516CC Suit for: BOLOBT gas spring series needs to be used with Release lever.
3.PN: STDE-ACC-BOL-271985 Suit for : BOL gas spring series、 BOL-T gas spring series needs to be used with Release lever.
|
