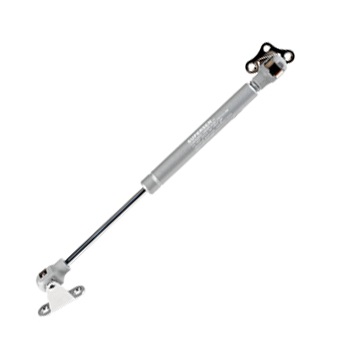

Products │  | Full Damper For Cabinet
產品大圖 /

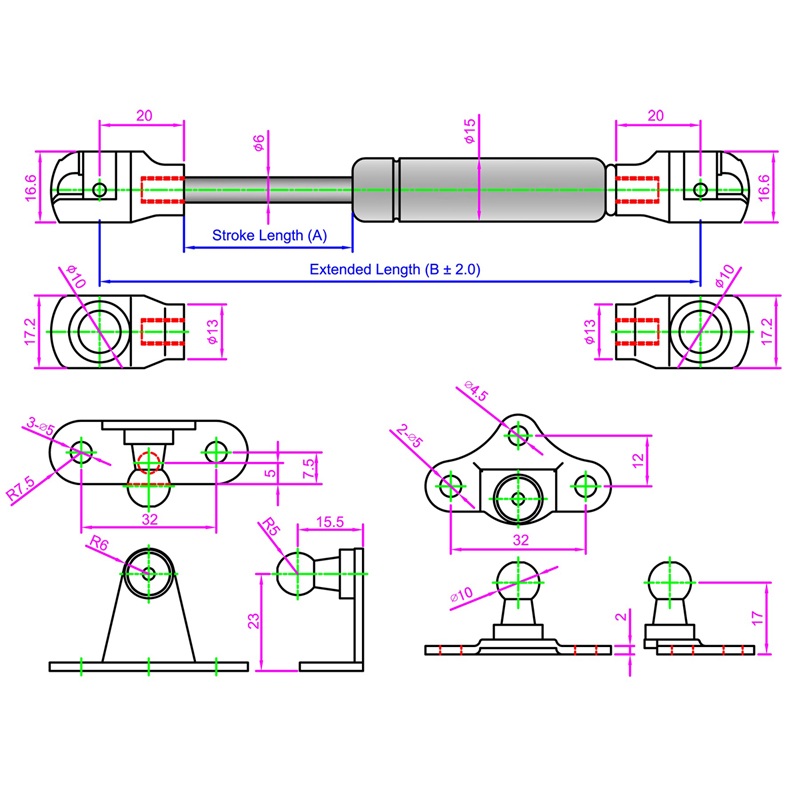

線稿
Unit: mm
9.8 Newton(N)=1Kg=2.2LBS

Model No. Stroke Length (A) Extended Length (B) Standard Force (N)
 A095260-B10-XXXNCFDP 95 260 25N,80N,100N,120N,150N

1. WHEN YOU MAKING ENQUIRY, PLEASE ADVISE US THE F1 (Newton) FORCE REQUEST.
Other size also available, Please contact us for further information.
2. Any angle can use.
3. The speed smooth.
4. Increase your equipment the value.
5. Effectively enhance rebound done stability.
6. Eliminate traditional rebound instant reaction
