Products │  │  │  │ A69P-0818 Eyelet (Metal)(Hole 6mm)Select Spec.

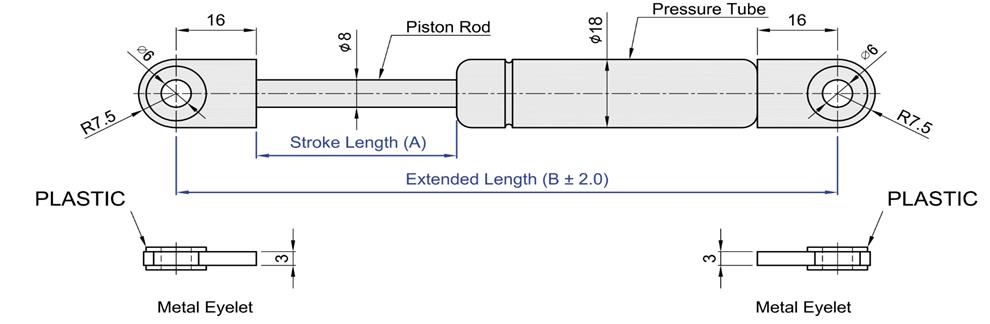

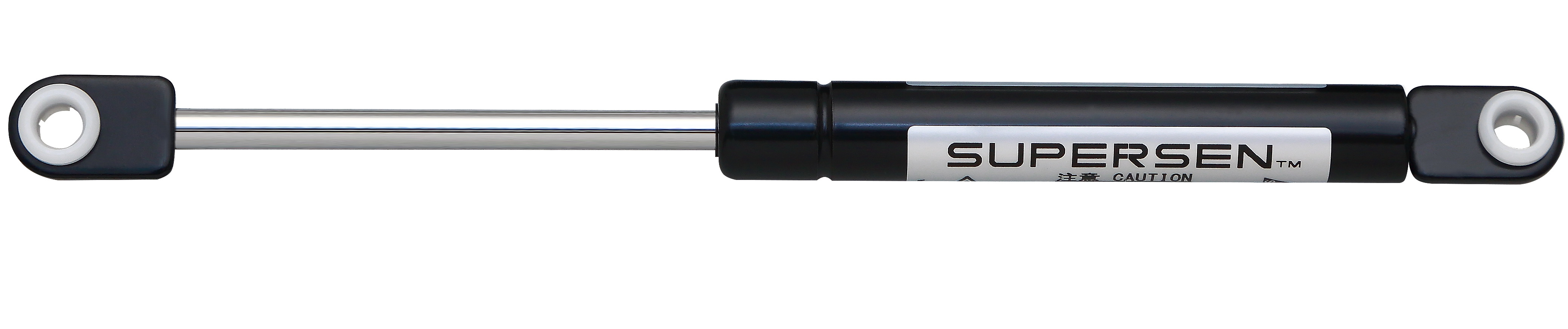

大產品圖 線稿

Unit:mm

9.8 Newton(N)=1 Kg=2.2 LBS

THE FOLLOWING SPECIFICATION ARE TOKICO JAPAN SIZE.



Model No. Stroke
(A)
Extended Length
(B)
Force
(F1)
Weight
(g)
Remark
B100261-A69P-100NB 100 261 100
B100261-A69P-263NB 263
B110281-A69P-100NB 110 281 100
B110281-A69P-300NB 300
B110281-A69P-324NB 324
B110281-A69P-400NB 400
B130365-A69P-100NB 130 365 100
B130365-A69P-200NB 200
B130365-A69P-300NB 300
B130365-A69P-400NB 400
B160420-A69P-100NB 160 420 100
B160420-A69P-150NB 150
B160420-A69P-200NB 200
B160420-A69P-250NB 250
B210525-A69P-100NB 210 525 100
B210525-A69P-150NB 150
B210525-A69P-200NB 200
B210525-A69P-250NB 300







Specification:



Rod Dia.: 8 mm
Tube Dia.: 18 mm
Rod Surface treatment : Hard Chrome Plated or Nitrided Black
Tube Surface treatment : Black Coated


※ When you  making enquiry ,please advise us the  F1(Newton) force request.
    Other size also available ,Please contact us for further information.



SUPERSEN-Gas Spring Free Series
Lifting, lowering, moving, adjusting

The gas spring can be designed with an approximately linear, progressive or degressive spring rate curve, to match the special request.
The characteristic curve of the spring describes the progression of the force of the gas spring over the stroke, from the extended to the compressed state and vice versa.


If the spring rate is flat and progresses in a practically linear manner, the force of the gas spring rises only slightly over the entire spring operation.
Spring rate: X=F2:F1


The force diagram on the left shows the line of the extension and compression force with a flat spring rate. The difference between the two lines is the result of the system friction produced during compression and extension.



The measuring points F1 and F4 are each located 5~10 mm before the fully extended and compressed stroke. The measurements were conducted at a temperature of 25℃±3℃.
