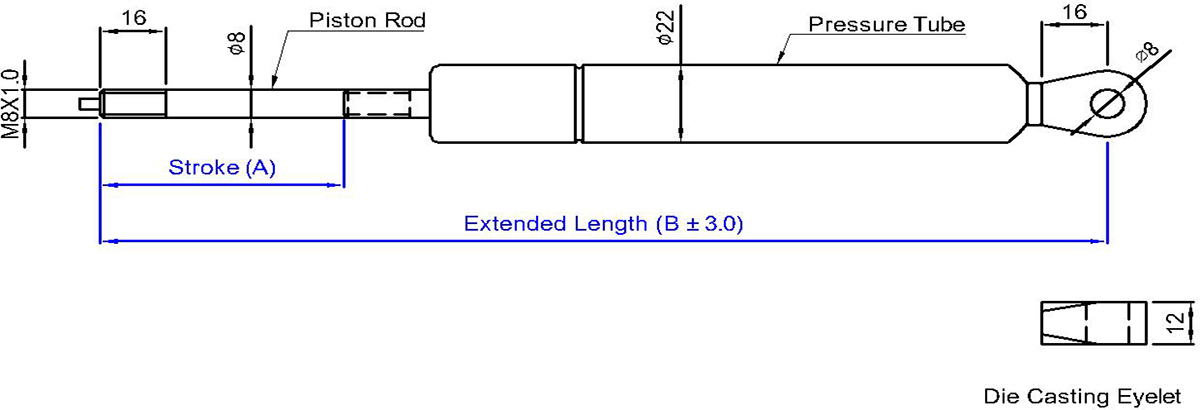

Unit： mm



9.8 Newton(N)=1Kg=2.2LBS





型號	行程 (A)	總長 (B)	壓力承製範圍 (N)	備註
BOLOBT-316-M8D9-XXXN	100	316	100~400N
BOLOBT-416-M8D9-XXXN	150	416	100~400N
BOLOBT-516-M8D9-XXXN	200	516	100~400N
BOLOBT-616-M8D9-XXXN	250	616	100~400N
BOLOBT-716-M8D9-XXXN	300	716	100~400N
BOLBOT-816-M8D9-XXXN	350	816	100~400N
BOLBOT-916-M8D9-XXXN	400	916	100~400N

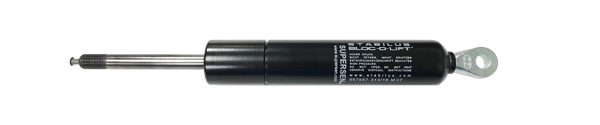

SUPERSEN Lock Type is high quality, high stability. OEM by STABILUS Germany.







The BLOC-O-LIFT OBT gas spring is used primarily for the convenient adjustment of table heights.







BLOC-O0LIFT OBT will lock rigidly in any desired position; it can be pulled out immediately without actuation if the situation so requires. In an emergency, the table top can be moved up and away using light pressure from below. The actuation lever is only required for lowering the table.







Usually,the OBT function of gas springs is used in vertical installations.







Advantages:





Fast and safe lifting of locked table tops without an actuaion mechanism.





Simplified handling of the tables increases safety.







Application:



Table adjustment systems in hospital nightstands and in school furniture,
