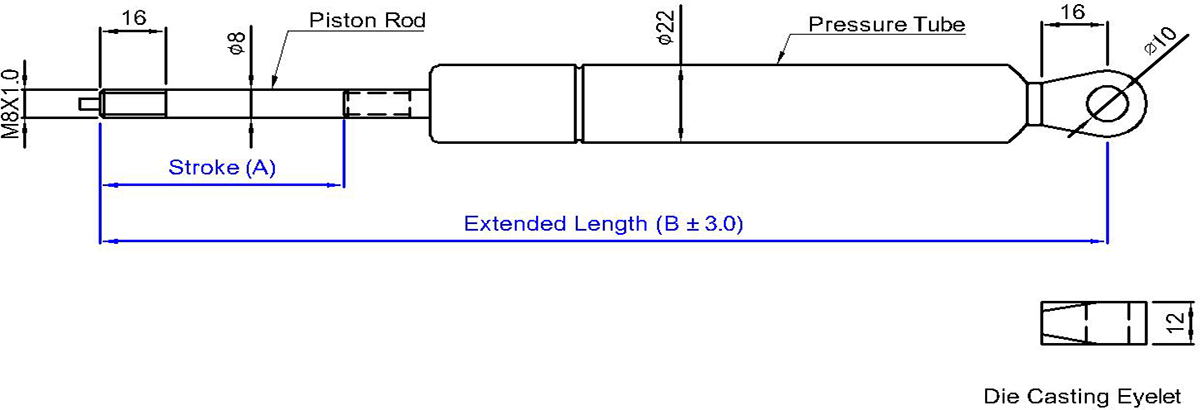

Unit： mm
9.8 Newton(N)=1Kg=2.2LBS
| 型號 | 行程 (A) | 總長 (B) | 壓力承製範圍 (N) | 備註 |
| BOLOBT-316-M8D3-XXXN | 100 | 316 | 100~400N | |
| BOLOBT-416-M8D3-XXXN | 150 | 416 | 100~400N | |
| BOLOBT-516-M8D3-XXXN | 200 | 516 | 100~400N | |
| BOLOBT-616-M8D3-XXXN | 250 | 616 | 100~400N | |
| BOLOBT-716-M8D3-XXXN | 300 | 716 | 100~400N | |
| BOLBOT-816-M8D3-XXXN | 350 | 816 | 100~400N | |
| BOLBOT-916-M8D3-XXXN | 400 | 916 | 100~400N | |
SUPERSEN Lock Type is high quality, high stability. OEM by STABILUS Germany.
The BLOC-O-LIFT OBT gas spring is used primarily for the convenient adjustment of table heights.
BLOC-O0LIFT OBT will lock rigidly in any desired position; it can be pulled out immediately without actuation if the situation so requires. In an emergency, the table top can be moved up and away using light pressure from below. The actuation lever is only required for lowering the table.
Usually,the OBT function of gas springs is used in vertical installations.
Advantages:
Fast and safe lifting of locked table tops without an actuaion mechanism.
Simplified handling of the tables increases safety.
Application:
Table adjustment systems in hospital nightstands and in school furniture,
