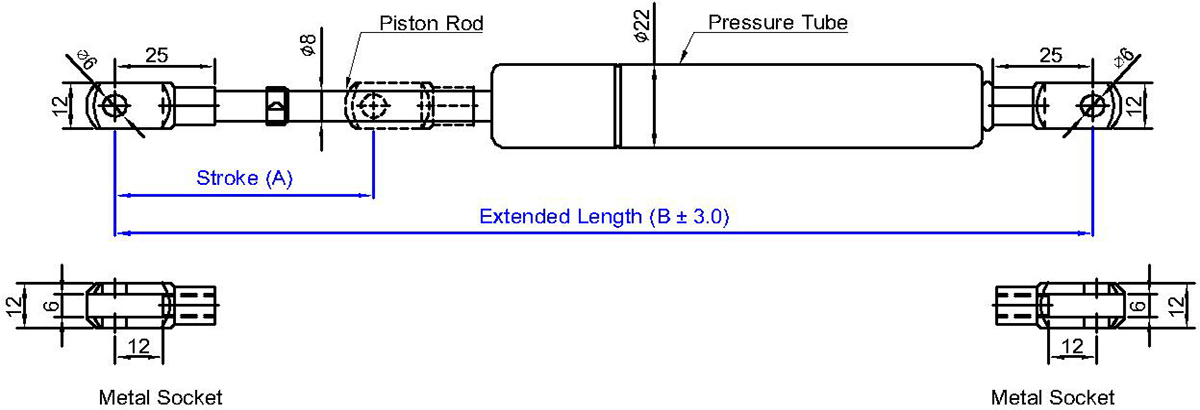

Unit：mm
9.8 Newton(N)=1 Kg=2.2 LBS
| Model No. |
Stroke (A) |
Extended Length(B) |
Force Range(N) |
Remark |
| PTL-100-U5-XXXN | 100 | 345 | 100~400N | |
| PTL-150-U5-XXXN | 150 | 445 | 100~400N | |
| PTL-200-U5-XXXN | 200 | 545 | 100~400N | |
| PTL-250-U5-XXXN | 250 | 645 | 100~400N | |
| PTL-300-U5-XXXN | 300 | 745 | 100~400N | |
| PTL-350-U5-XXXN | 350 | 845 | 100~400N | |
| PTL-400-U5-XXXN | 400 | 945 | 100~400N | |

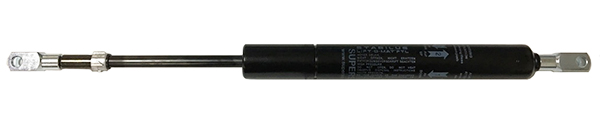

Supersen Gas Spring-PTL (Push To Lift) series was OEM produced by Stabilus Germany,Fill and Assemble and QC By Supersen.
PTL are firstly imported and applied to Taiwanese high class industries and furniture. They own high Germany quality but offer reasonable price. Inquiries are welcome.
Advantages:
1. Locking in compressed position
2. End position lock without additional locking elements
3. Simple release of lock using the ballpoint pen principle
4. User-friendly, convenient operation
5. Maintenance-free
Supersen PTL series can Lifting, lowering, moving and adjusting. Fully compress then locked. The function of PTL is similar to automatic pencil.
Specification:
Rod Dia.: 08 mm
Tube Dia.: 22 mm
Rod Surface treatment : Nitrided Black
Tube Surface treatment : Black Coated
※ When you making enquiry, please advise us the F1(Newton) force request.
